Static mixer with multiple injection points in the UK

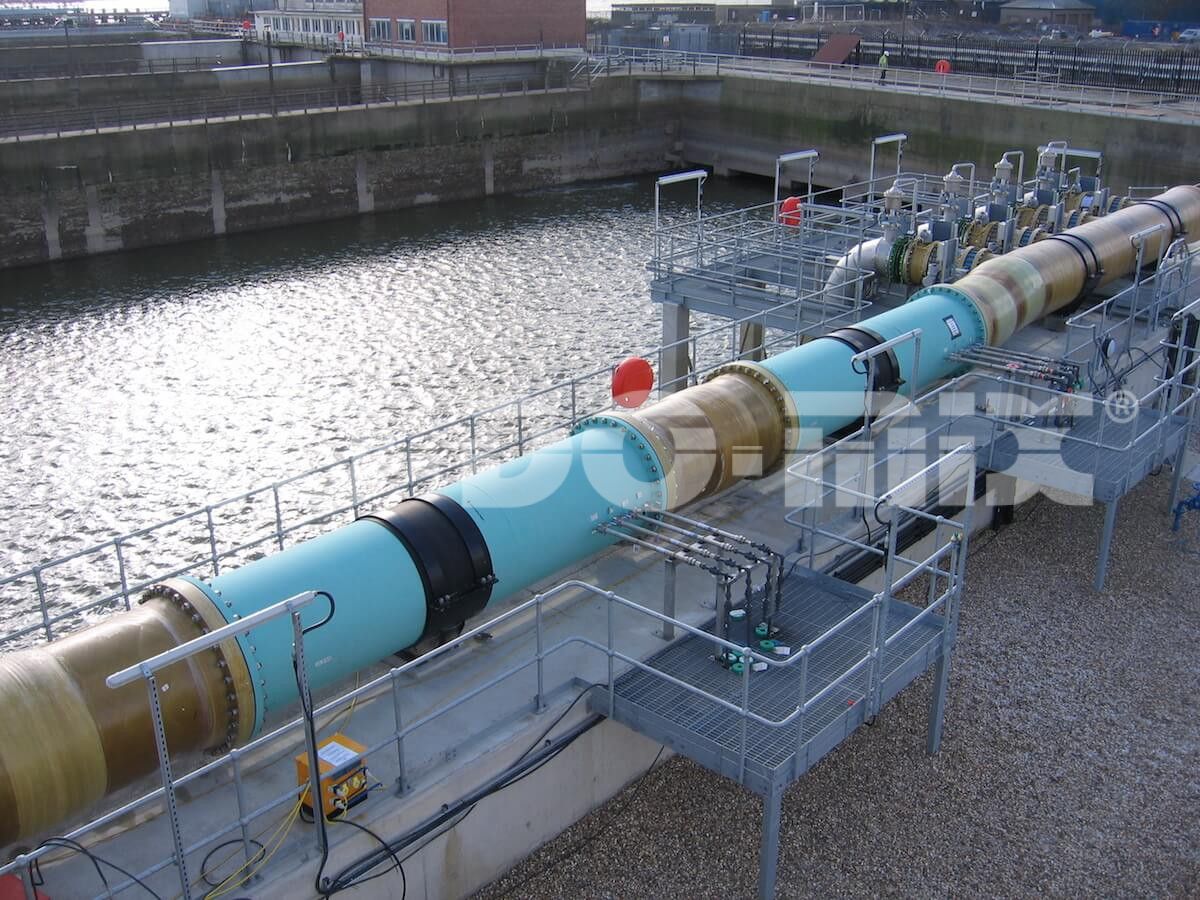

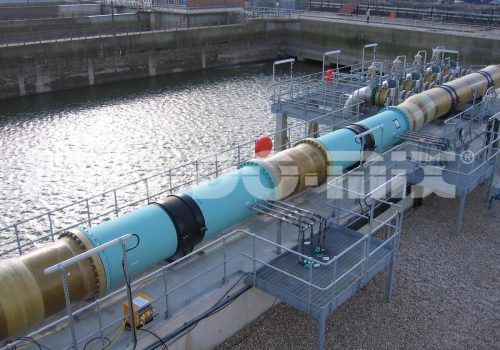

The photo shows two Kenics/NOV static mixers in epoxy painted carbon steel, model HEV (High Efficiency Vortex), with a diameter of 1200 mm, and with multiple injection points, installed in a GRP pipeline.

They are installed in a drinking water plant in the UK; the HEV model was chosen as it can mix large volumes of water and chemicals.

Thanks to its special configuration, the mixing parts create vortices, reinforcing and implementing radial mixing to full completion. In addition, the reduced pressure drop ensures reduced energy consumption.
